Simple Shapes. Custom Cuts. No Limitations.

We fabricate a wide range of glass shapes for both insulated glass units (IGUs) and flat glass.

From standard geometric shapes to fully custom designs, we can produce exactly what your project requires.

Common shapes we produce

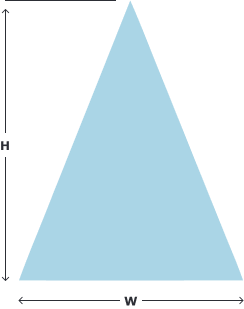

Shape Name: Isosceles Triangle

Shape#: PGP038

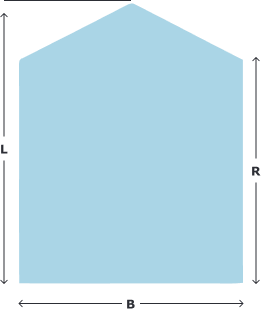

Shape Name: Dog House

Shape#: PGP123

Shape Name: Oval

Shape#: PGP025x`x`

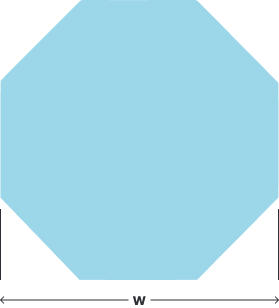

Shape Name: Octagon

Shape#: PGP162

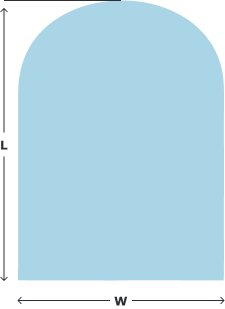

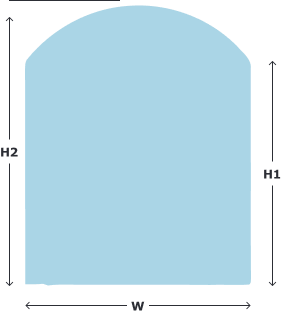

Shape Name: Arch Top

Shape#: PGP177

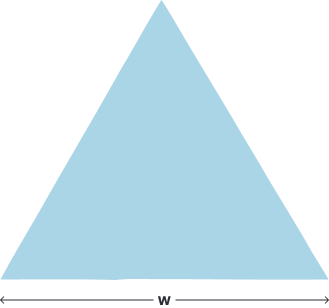

Shape Name: Equalateral Triangle

Shape#: PGP036

Shape Name: Isosceles Triangle

Shape#: PGP179

Shape Name: Circle

Shape#: PGP001

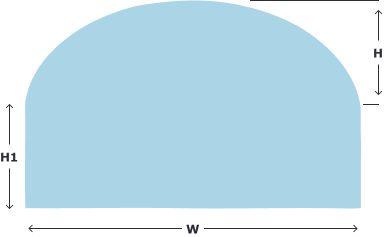

Shape Name: Arch Button Up

Shape#: PGP190

Available In

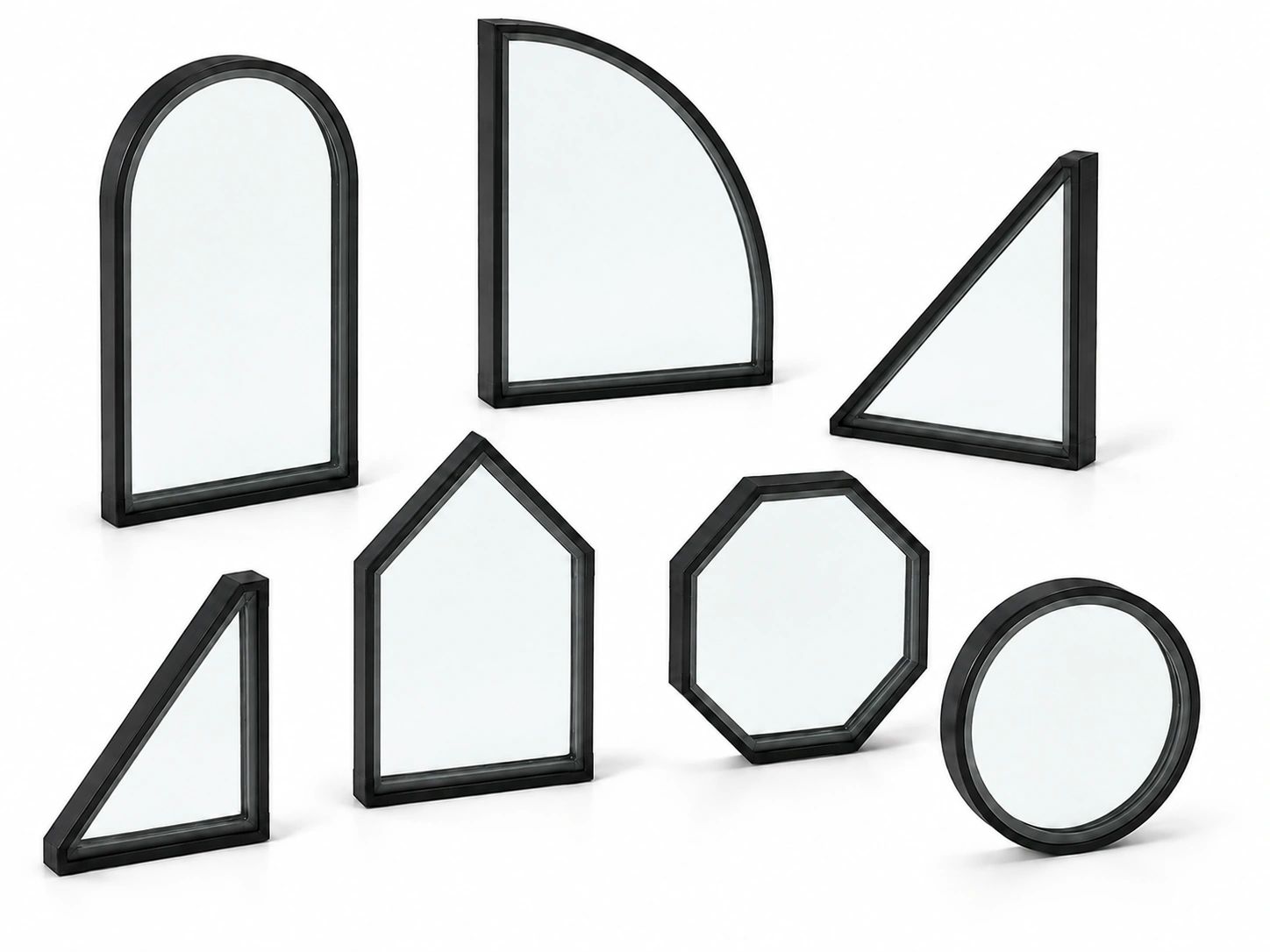

Insulated Glass Units (IGUs)

Annealed Glass

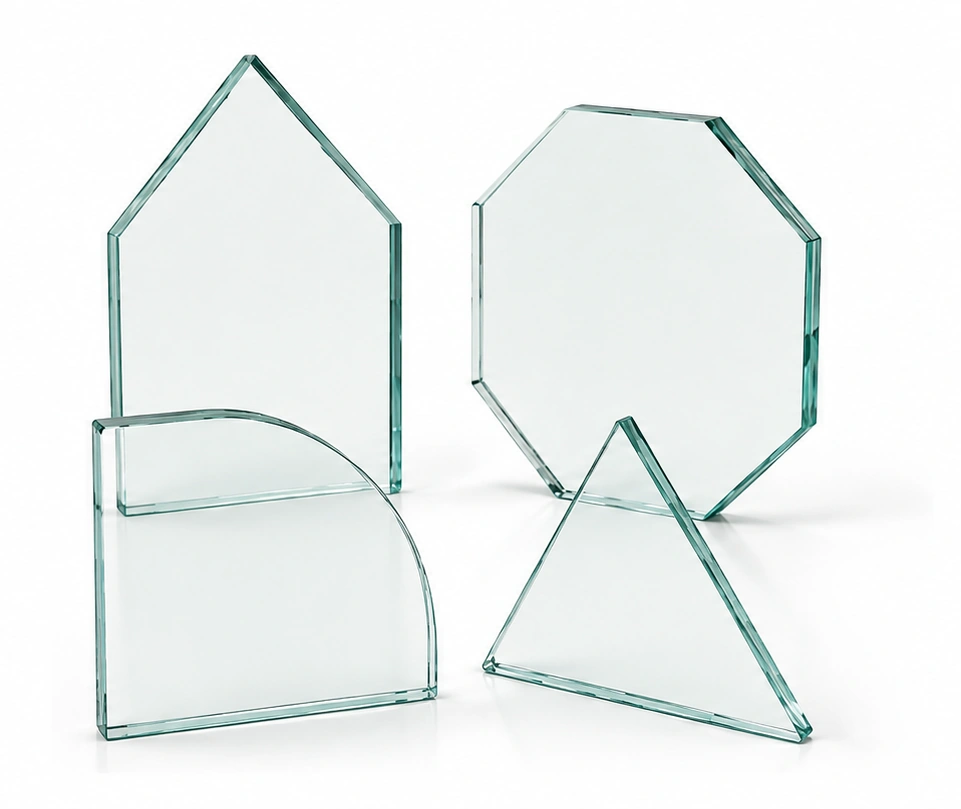

Tempered Glass

Common shapes we produce

Shape Name: Isosceles Triangle

Shape#: PGP038

Shape Name: Dog House

Shape#: PGP123

Shape Name: Oval

Shape#: PGP025

Shape Name: Octagon

Shape#: PGP162

Shape Name: Arch Top

Shape#: PGP177

Shape Name: Equalateral Triangle

Shape#: PGP036

Shape Name: Isosceles Triangle

Shape#: PGP179

Shape Name: Circle

Shape#: PGP001

Shape Name: Arch Button Up

Shape#: PGP190

Common shapes we produce

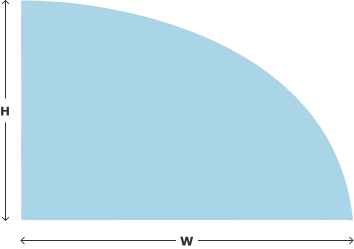

Shape Name: Quarter Arch Right

Shape#: PGP028-1 (Right)

Mirror#: PGP028-2 (Left)

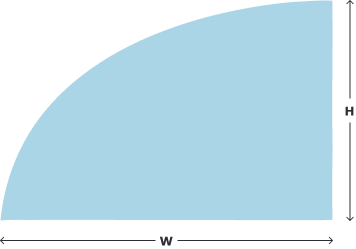

Shape Name: Quarter Arch Left

Shape#: PGP028-1 (Right)

Mirror#: PGP028-2 (Left)

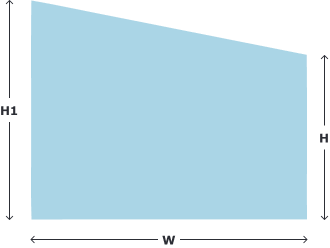

Shape Name: Rake

Shape#: PGP060-1 (Right)

Mirror#: PGP060-2 (Left)

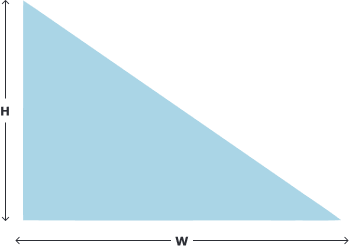

Shape Name: Right Triangle

Shape#: PGP037-1 (Right)

Mirror#: PGP037-2 (Left)

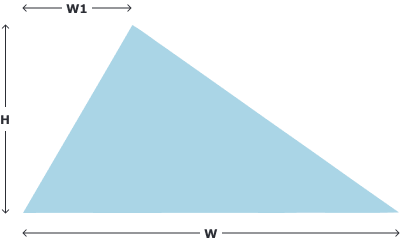

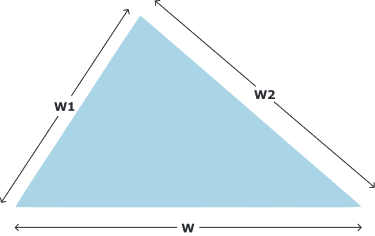

Shape Name: Scalene Triangle

Shape#: PGP041-1 (Right)

Mirror#: PGP041-2 (Left)

Shape Name: Offset Left

Shape#: PGP039-1 (Right)

Mirror#: PGP039-2 (Left)

Shape Name: Quarter Arch w/Leg

Shape#: PGP197-1 (Right)

Mirror#: PGP197-2 (Left)

Shape Name: True Quarter Arch w/Leg

Shape#: PGP199-1 (Right)

Mirror#: PGP199-2 (Left)

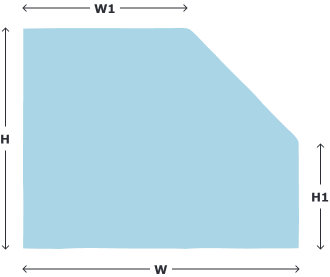

Shape Name: Clipped Corner

Shape#: PGP130-1 (Right)

Mirror#: PGP130-2 (Left)

Don’t See Your Shape? We Do Custom Patterns.

If your shape isn’t standard, no problem — we specialize in custom pattern fabrication.

Send us a drawing, template, or dimensions, and we’ll manufacture the glass to match your exact design.

Whether it’s a unique architectural design or a hard-to-match replacement, we’ll get it done accurately and consistently.
